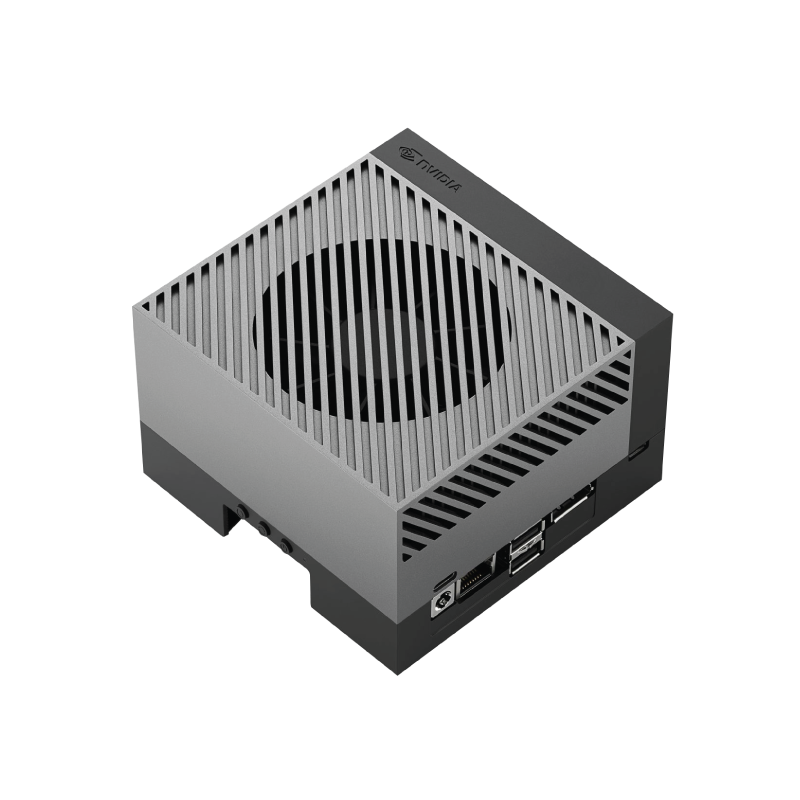

The NVIDIA^® Jetson AGX Orin^™ Developer Kit includes a high-performance, power-efficient Jetson AGX Orin module, and can emulate the other Jetson Orin modules. You now have up to 275 TOPS and 8X the performance of NVIDIA^® Jetson AGX Xavier^™ in the same compact form-factor for developing advanced robots and other autonomous machine products. Supported by NVIDIA JetPack^™ and use-case specific software platforms including Isaac for robotics, and Metropolis for smart cities, this developer kit provides everything you need to get started right away.

JETSON AGX ORIN MODULE

GPU NVIDIA Ampere architecture with 2048 NVIDIA^® CUDA^® cores and 64 Tensor cores

CPU 12-core Arm Cortex-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3

DL Accelerator 2x NVDLA v2.0

Vision Accelerator PVA v2.0

Memory 32GB 256-bit LPDDR5 204.8 GB/s

Storage 64GB eMMC 5.1

Video Encode 2x 4K60 | 4x 4K30 | 8x 1080p60 | 16x 1080p30 (H.265)

Video Decode 1x 8K30 | 3x 4K60 | 6x 4K30 | 12x 1080p60 | 24x 1080p30 (H.265)

REFERENCE CARRIER BOARD

Camera 16 lane MIPI CSI-2 connector

PCIe x16 PCIe slot supporting x8 PCIe Gen4

RJ45 Up to 10 GbE

M.2 Key M x4 PCIe Gen 4

M.2 Key E x1 PCIe Gen 4, USB 2.0, UART, I2S

USB Type-C 2x USB 3.2 Gen2 with USB-PD support

USB Type-A 2x USB 3.2 Gen2, 2x USB 3.2 Gen1

USB Micro-B USB 2.0

DisplayPort DisplayPort 1.4a (+MST)

microSD slot UHS-1 cards up to SDR104 mode

Other
40-pin header (I2C, GPIO, SPI, CAN, I2S, UART, DMIC)
12-pin automation header
10-pin audio panel header
10-pin JTAG header
4-pin fan header
2-pin RTC battery backup connector
DC power jack
Power, Force Recovery, and Reset buttons

Dimensions
110mm x 110mm x 71.65mm
(Height includes feet, carrier board, module, and thermal solution)
